2019 New Product-3D Panel Light
Author：Ibestwork Technology Ltd
Click：
Time：2019-01-01 00:00:00

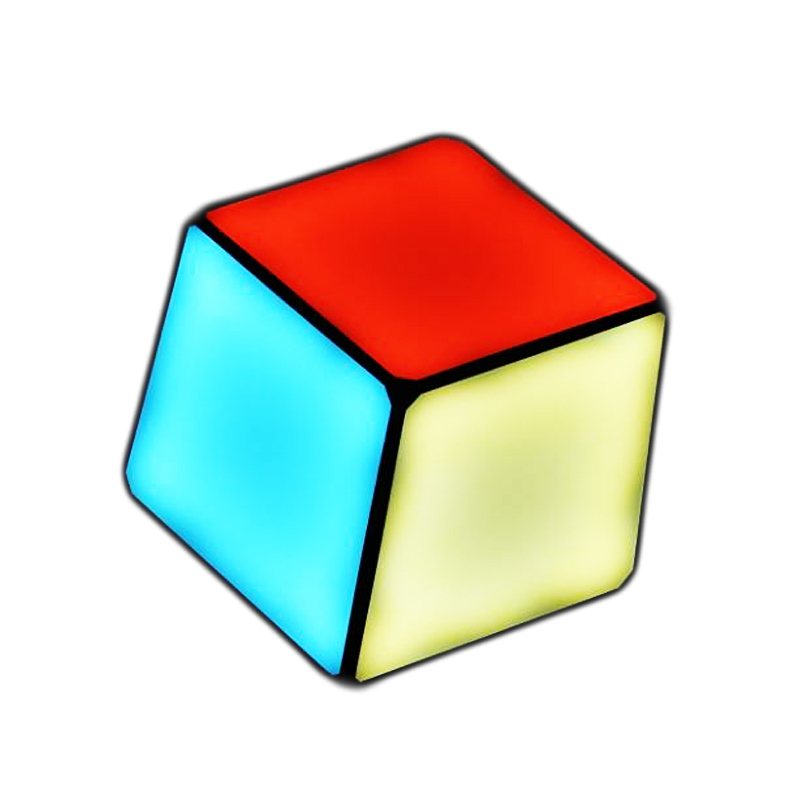

1. Rhombus shape design, achieve 3D light effect with flat light fixture.
2. DMX Surpot standard DMX512.
3. 24V voltage supply, lower power, less heat.
4. Pixel Control Every 2 leds or 1 led on each side can be controlled as one pixel.
5. Programmable Programming easily via MA, AI, Madmapper, Madrix Etc.
6. Music Active Music controlling the light makes you say "WOW"!
7. Smart Easy installation.
8. Application Clubs&bars, stage, concert, theater, and kinds of events, Etc.
| Model | IBW-P-004 |
| Size | L180*W180*H40mm |
| Shell | PC milky cover with black aluminum |
| LED | SMD RGB 5050 |
| LED QTY | 36 pcs |
| Pixel QTY | 1 pixel |
| ball Qty/Universe | 170 pcs |
| Voltage | DC24V |
| Power | 9W |
| Control Mode | DMX512 |
| Address Setting | Automatically |
| LED Source Life | 50,000hours,based on LED manufacturers test data |
| DMX channel | 3 |
| Temperature | -4℉ to 122℉(-20℃ to 50℃) operating temperature |
| Humidity Range | 0 to 95% non-condensing |
| Protection | IP65 |
