IBW-L-005
Description

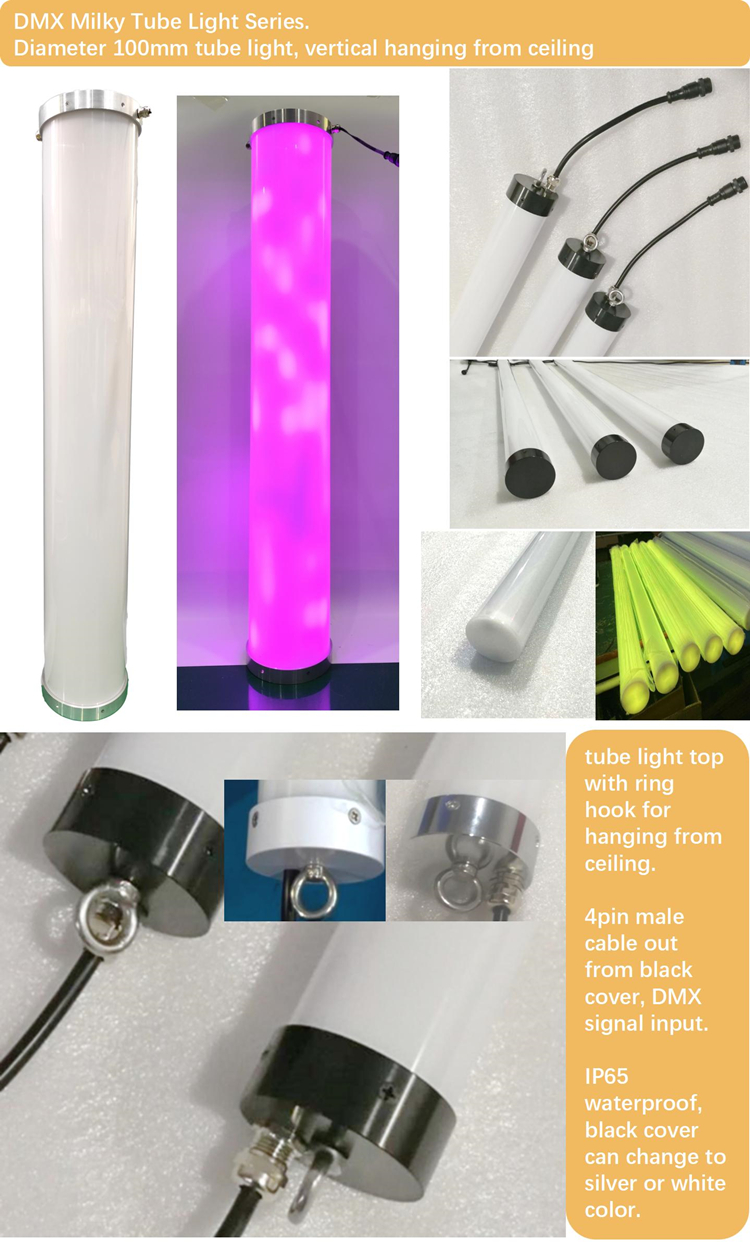

1. 360° Lighting design, achieve any 3D effect that you want.
2. Standard DMX512 protocol.
3. 24V voltage supply, lower power, less heat.
4. Pixel control every 4 leds or 1 led on each side can be controlled as one pixel.
5. Programming easily via MA, AI, Madmapper, Madrix Etc.
6. Music active,mcontrol the light makes you say 'WOW'!
7. Smart easy installation, variety size available (Length: 0.4/0.5/0.8/1/1.2/1.5M)
8. Application clubs&bars, stage, concert, theater, and kinds of events, etc.
Specification
| Model | IBW-L-005A | IBW-L-005B |
| Diameter | 100mm | 100mm |
| Length | 500mm | 1000mm |
| LED | SMD RGB 5050 | SMD RGB 5050 |
| LED QTY | 32pcs | 64pcs |
| Pixel QTY | 8 pixels | 16pixels |
| Tube Qty/Universe | 20 pcs | 10 pcs |
| Voltage | DC15V | DC15V |
| Power | 7.2W | 14.4W |
| DMX channel | 24 | 48 |
| Beam angle | 360 | 360 |
| Control Mode | DMX512 | DMX512 |
| Address Setting | Manually | Manually |
| LED Source Life | 50,000hours,based on LED manufacturers test data | |
| Housing | milky cover, aluminum base | |
| Temperature | -4℉ to 122℉(-20℃ to 50℃) operating temperature | |
| Humidity Range | 0 to 95% non-condensing | |
| Protection | IP65/IP44 | |
Accessories
| Cable | ||
| T444 | T442 | I-Cable-2 |
for vertical tube light connect, one by one. When light need to give power, T444 will connect with T442. | for power supply, connect with T444 T442 cable shall be installed and connected close to the luminaire. | 15cm 2pin female to bare wire,this cable connect with T442, 2pin for repower, the bare connect with power supply(+ and -) |
 | |  |
| Cable | ||
| I-Cable-34 | EX4-4 | EU/AU/US/UK plug cable |
3pin male XLR connect with DMX controller port, 4pin female connect connect with light (cable T444 or T442)(for transfer signal). | extension cable, 4pin female connector and 4pin male connector, for the situation which controller between light has long distance | AC power cable for power supply and DMX controller |
 |  |  |
| Power Supply | DMX Artnet Controller | Madrix/Madmapper light software |
| Original Meanwell Brand | 4,12,20,30 universe | 2 light software for you to choose |
 |  |  |
Connection

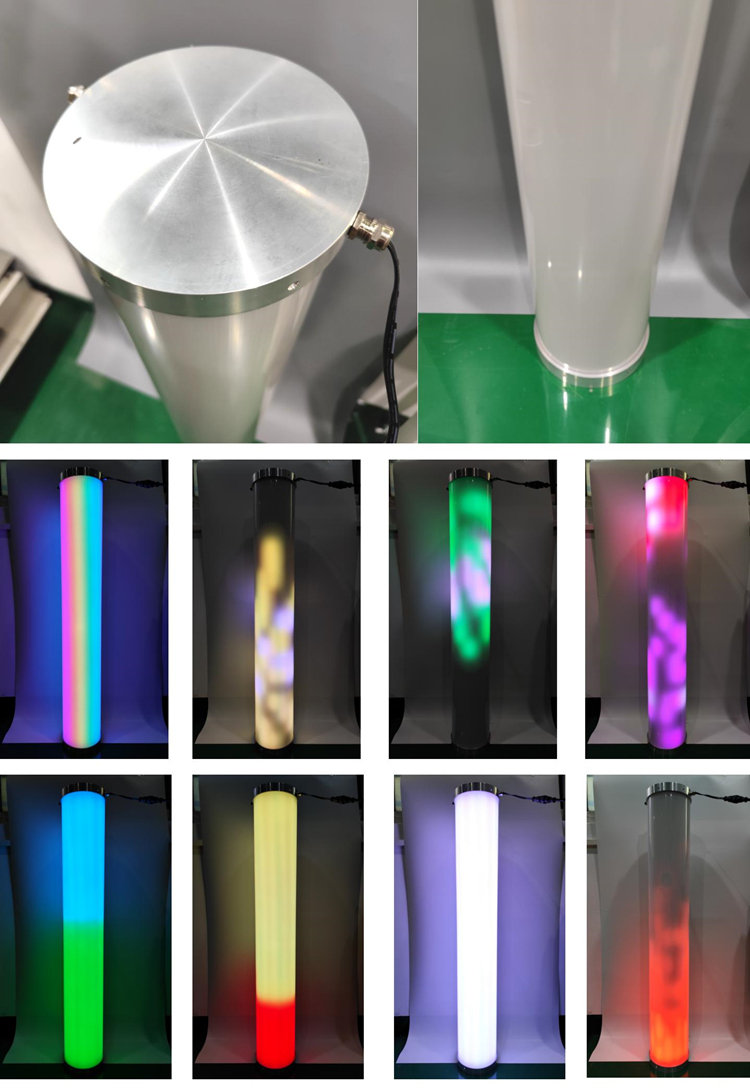

Light Effect
