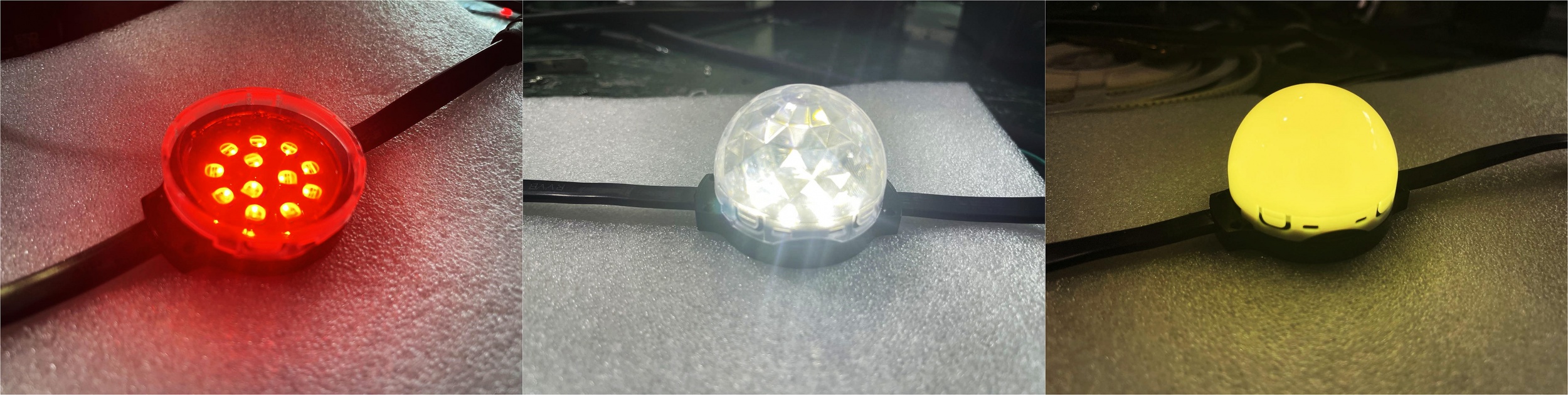

IBW-D-50
Description
Application:
1. Make high-precision, super-large outdoor advertising display screen
2.Used for LED light source for outdoor signs or signboards
3.Used for big building lighting, parks, bridges and other landscape lighting
4.Used for outline of various large buildings
5.Used for the production of media advertising screens
installation method:
1.Aluminum groove for installation
2.Wire buckle installation 3.Punch installation
Installation Accessories：
Specification
| Model | IBW-D-50 |
| Size | 50*15.4mm |
| Application | indoor/outdoor |
| Weight | 31g |
| Shell material | PC |
| Max QTY each chain | 50pcs/string |
| Center distance | 10cm minimum |
| Lifesapn | 50000h |
| Optional accessories | aluminum groove wire buckle |
| Protection parameters | |
| Waterproof rating | IP67 |
| Shell flame resistance | V-0 |
| Anti-UV grade | 4 |
| Salt spray test | Resistance to salt spray |
| Impact resistance | IK10 |
| Electrical safety level | Class III |
| Safely certification | CE FCC |
| Working temperatuer | -40℃-55℃ |
| Optical parameters | |
| LED Color | RGB |
| Beam Angle | 120 degree |
| Color resolution | 3*8 bit |
| Chip type | 3535 |
| Electrical parameters | |
| Working voltage | DC24V |
| Rated power | 1.44W |
| Supporting system | |
| Control system | DMX512/Serial SPI |
| Power system | DC24V/350W |
Accessories
| Cable | ||
| T444 | T442 | I-Cable-2 |
for vertical ball light connect, one by one. When light need to give power, T444 will connect with T442. | for power supply, connect with T444 | 15cm 2pin female to bare wire,this cable connect with T442, 2pin for repower, the bare connect with power supply(+ and -) |
 | |  |
| Cable | ||
| I-Cable-34 | EX4-4 | EU/AU/US/UK plug cable |
3pin male XLR connect with DMX controller port, 4pin female connect connect with light (cable T444 or T442)(for transfer signal). | extension cable, 4pin female connector and 4pin male connector, for the situation which controller between light has long distance | AC power cable for power supply and DMX controller |
 |  |  |
| Power Supply | DMX Artnet Controller | Madrix/Madmapper light software |
| Original Meanwell Brand | 1,4,12,20,30 universe | 2 light software for you to choose |
 |  |  |
Light Effect
