IBW-B-20
Description
1. 360° Lighting design, achieve any 3D effect that you want.
2. DMX Surpot standard DMX512.
3. 12V voltage supply
4. Programmable Programming easily via MA, AI, Madmapper, Madrix Etc.
5. Music Active Music controlling the light makes you say 'WOW'!
6. Application Clubs&bars, stage, concert, theater, and kinds of events, Etc.
Three ways to control mini 3D ball light:
1. master and branch controller(DVI or SD card controller).
2. Madrix+Artnet+decoder
3. Madrix+Nebula controller
Specification
| Model | IBW-B-20 |
| Diameter | 20mm |
| Type | 50 or 80 lamps/string |
| Pixel pitch | 50mm |
| Ball qty/ string | 35 Ball |
| Power/ string | 36W or 58W / string |
| Max Length /string | 2.5M or 4M/ string |
| Beam angle | 360 degree |
| LED | 2pcs SMD RGB 5050/Ball |
| Led light power | 0.72W /Ball |
| Housing Color | Milky/Frosted / Clear |
| Input Voltage | DC12V |
| Net Weight | 0.02kg / 1 pc |
| Driving mode | Static, constant currency |
| Frame rate | 15~75HZ |
| Grey level | 16bits*16bits*16bits |
| Life span | ≥50,000h |
| Refresh rate | ≥2000HZ |
| Protective level | IP44 |
| Humidity | 20%-95%RH |
| Work temperature | -20℃-70℃ |
Accessories
| Cable | ||
| T444 | T442 | I-Cable-2 |
for vertical ball light connect, one by one. When light need to give power, T444 will connect with T442. | for power supply, connect with T444 | 15cm 2pin female to bare wire,this cable connect with T442, 2pin for repower, the bare connect with power supply(+ and -) |
 | |  |
| Cable | ||
| I-Cable-34 | EX4-4 | EU/AU/US/UK plug cable |
3pin male XLR connect with DMX controller port, 4pin female connect connect with light (cable T444 or T442)(for transfer signal). | extension cable, 4pin female connector and 4pin male connector, for the situation which controller between light has long distance | AC power cable for power supply and DMX controller |
 |  |  |
| Power Supply | DMX Artnet Controller | Madrix/Madmapper light software |
| Original Meanwell Brand | 1,4,12,20,30 universe | 2 light software for you to choose |
 |  |  |

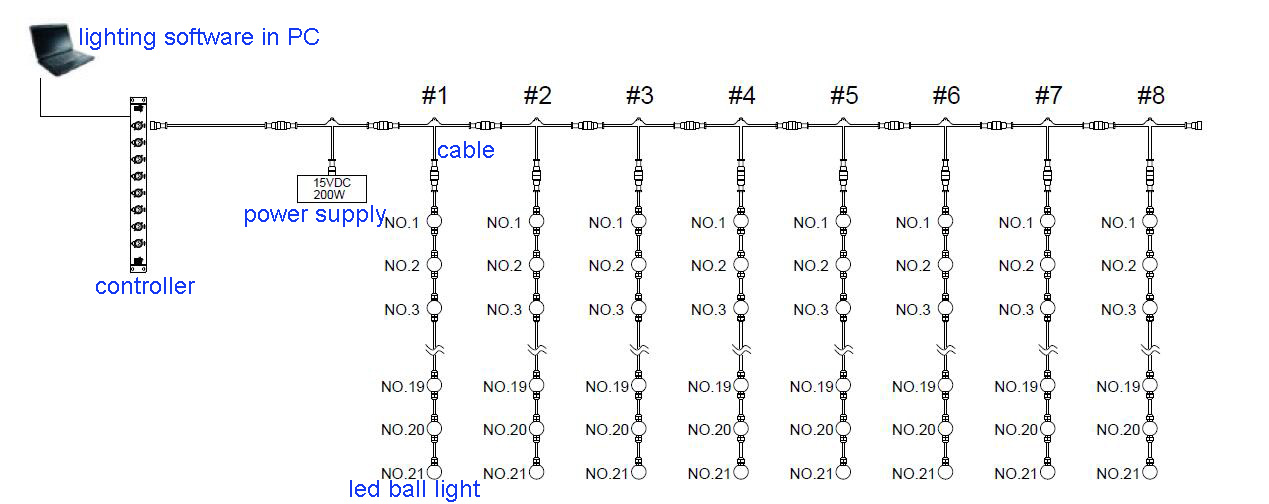

Connection
Three ways to control mini 3D ball light:
1. master and branch controller(DVI or SD card controller).
2. Madrix+Artnet+decoder
3. Madrix+Nebula controller
Light Effect
