IBW-F-36L36W

Features

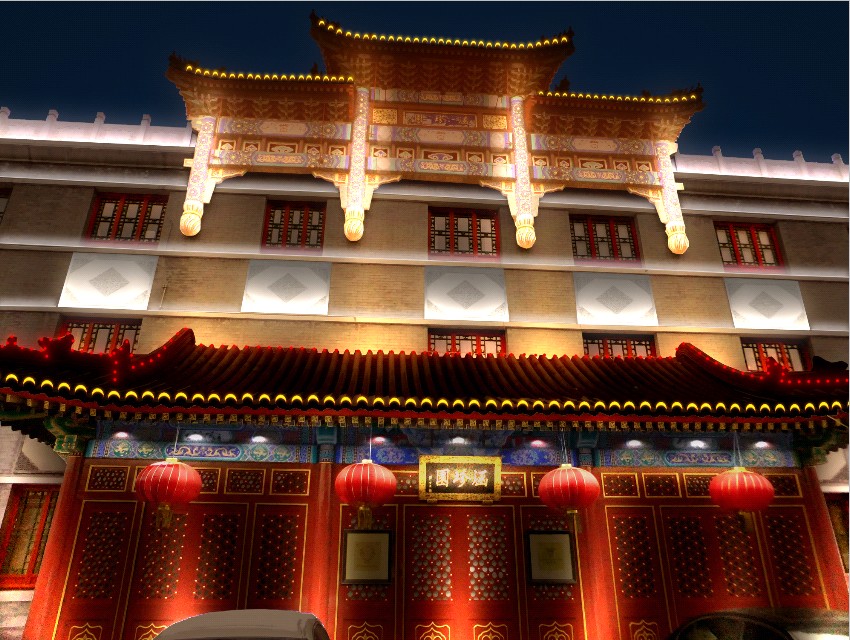

Scope: landscape lighting, bridge, building lighting, advertising license out, hotels, cultural facilities, and professional lighting square, bars discos and other Places of entertainment and architecture lighting.

Specification

ModelIBW-F-36L36W
DiameterL200mm
Shell Colorgray
LEDeach 1W
LED QTY36pcs
Pixel QTY1 pixel
Light Qty/Universe1 pcs
VoltageDC24V
Power36W
DMX channel3
Beam angle30°/45°/60°
Control ModeDMX512
Address SettingAutomatic
LED Source Life50,000hours,based on LED manufacturers test data
Housingaluminum Body, silica gel irrigation, tempered glass
Temperature-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range0 to 95% non-condensing
ProtectionIP65





































Accessories

Cable

T444T442I-Cable-2

for multiple light vertically connect.

When light need to give power, T444 will connect with T442.

for power supply, connect with T444

15cm 2pin female to bare wire,this cable connect with T442, 2pin for repower, the bare connect with power supply(+ and -)


Cable

I-Cable-34EX4-4EU/AU/US/UK plug cable

3pin male XLR connect with DMX controller port, 4pin female connect connect with light (cable T444 or T442)(for transfer signal).

extension cable, 4pin female connector and 4pin male connector, for the situation which controller between light has long distance

AC power cable for power supply and DMX controller


Power SupplyDMX Artnet ControllerMadrix/Madmapper light software
Original Meanwell Brand1,4,12,20,30 universe2 light software for you to choose


Light Effect



IBW-F-36L36W
