803TC

Description

1. Features

(1). 803TC can work with PC(online), SD card(offline) or DMX console.

(2). H803TC drives maximum 170000 pixels, 2 ports control maximum 255 slave controllers.

(3). Slave controller is 801RA, 802RA or 801RC.

(4). By combining 803TC with 802RA, you can set address for DMX512 chips.

(5). 803TC transmits signal based on Ethernet Protocol. Max transmission distance from 803TC to slave controller is 100 meters.

(6). Use four buttons to switch files, set play mode, speed and brightness.

(7). SD card supports FAT32, FAT16 format, maximum capacity is 64G bytes, stores up to 64 DAT files.



2. Supported Driver Chips

LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

Note: H803TC supports more than the chips listed above(some chips have the same sequence diagram, for example: UCS512, WS2821 and DMX512 have the same protocol, H803TC supports them all).

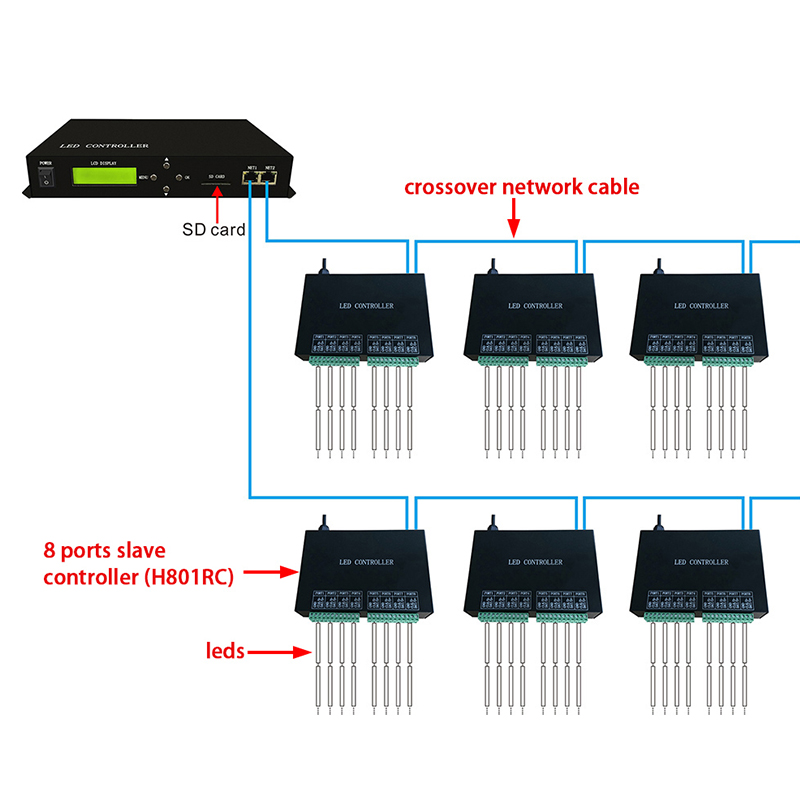

Connection

803TC
Long press to look detail
