IBW-B-80

Description

1.D 360° Lighting design, achieve any 3D effect that you want.

2.DMX Surpot standard DMX512.

3.24V voltage supply

4.Programmable Programming easily via MA, AI, Madmapper, Madrix etc.

5.Music Active Music controlling the light makes you say "WOW"!

6.Application Clubs&bars, stage, concert, theater, and kinds of events, etc.

Specification

ModelIBW-D-80AIBW-D-80B
Diameter80mm80mm

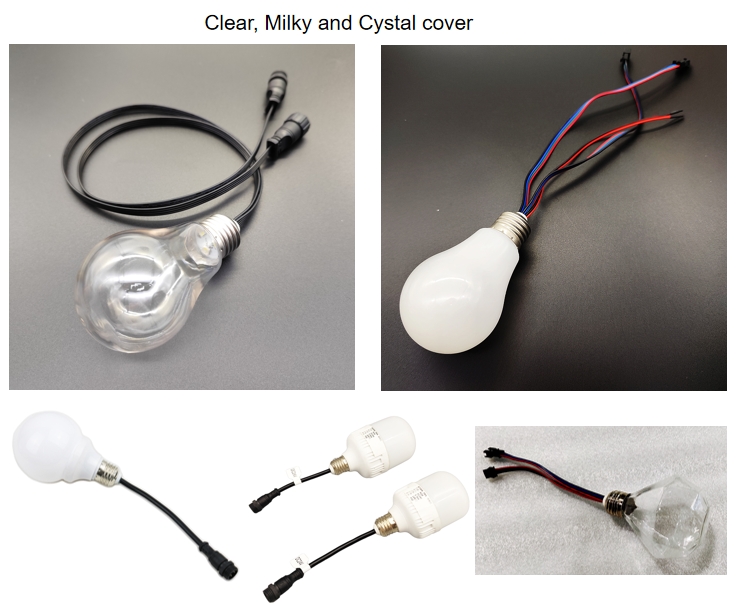

ShellPC milky coverPC milky cover
LEDSMD RGB 5050SMD RGB 5050
LED QTY3 pcs3 pcs
Pixel QTY1 pixel1 pixel
ball Qty/Universe170 pcs170 pcs
VoltageDC12VDC12V
Power0.72W0.72W
Control ModeDMX512DMX512
Address SettingManuallyManually
LED Source Life50,000hours,based on LED manufacturers test data
DMX channel33
Temperature-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range0 to 95% non-condensing
ProtectionIP22
IP65
































Accessories

Cable

T444T442I-Cable-2

for vertical bulb light connect, one by one.

When light need to give power, T444 will connect with T442.

for power supply, connect with T444

15cm 2pin female to bare wire,this cable connect with T442, 2pin for repower, the bare connect with power supply(+ and -)


Cable

I-Cable-34EX4-4EU/AU/US/UK plug cable

3pin male XLR connect with DMX controller port, 4pin female connect connect with light (cable T444 or T442)(for transfer signal).

extension cable, 4pin female connector and 4pin male connector, for the situation which controller between light has long distance

AC power cable for power supply and DMX controller


Power SupplyDMX Artnet ControllerMadrix/Madmapper light software
Original Meanwell Brand1,4,12,20,30 universe2 light software for you to choose

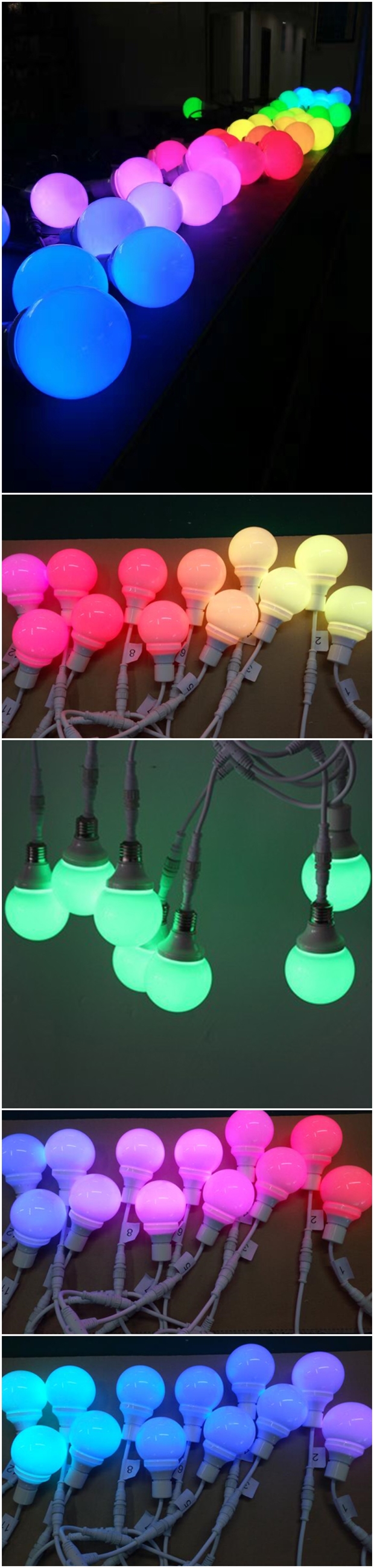

Light Effect
